DEUDENT Surgical Kits are expertly designed with a focus on simplicity and efficiency. Developed with cutting-edge technology and ease of use in mind, these kits can be effortlessly utilized by any dentist. Each instrument is carefully manufactured to align with implant procedures, ensuring maximum convenience and comfort throughout the surgical process.
EVERYTHING YOU NEED IS IN THIS KIT
The contents of our surgical kit are meticulously designed to meet every requirement of the surgical procedure. It is suitable for use with both bone-level and tissue-level implants of any diameter.
Our surgical kit includes a variety of innovative instruments designed to ensure your procedures are performed accurately and comfortably. The drills are depth-marked and equipped with stoppers, providing precision and safety throughout the surgery.
DEUDENT SURGICAL KITS;
MORE THAN A SURGICAL KIT
FIRST GUIDE DRILL
FIRST GUIDE DRILL
L:35 mm
Ø : 2.2 mm
Drilling Depths
8.0,10.0,12.0,14.0 mm
SECOND GUIDE DRILL
SECOND GUIDE DRILL
L:35 mm
Ø : 2.6 mm
Drilling Depth : 8.0,10.0,12.0,14.0 mm
Drilling Speed : 800-1000 rpm
Drilling Torque : 30 / 45 Ncm

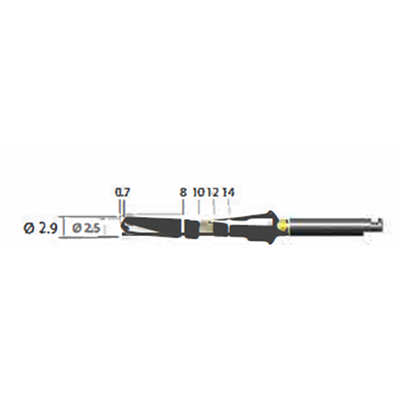

FINAL DRILL Ø 3.6
FINAL DRILL Ø 3.6
L:35 mm
Ø : 2.9 mm
Drilling Depth : 8.0,10.0,12.0,14.0 mm
Drilling Speed : 800-1000 rpm
Drilling Torque : 30 / 45 Ncm

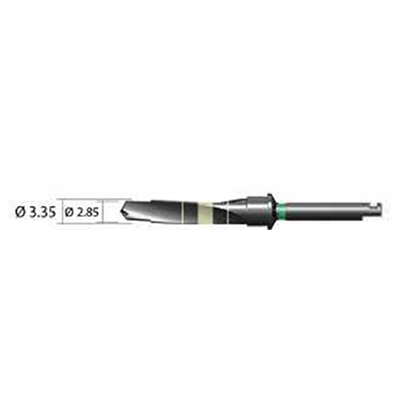

FINAL DRILL Ø 4.0
FINAL DRILL Ø 4.0
L : 35 mm
Ø : 3.35 mm
Drilling Depth : 8.0,10.0,12.0,14.0 mm
Drilling Speed : 800-1000 rpm
Drilling Torque : 30 / 45 Ncm
FINAL DRILL Ø 4.5
FINAL DRILL Ø 4.5
L : 35 mm
Ø : 3.85 mm
Drilling Depth : 8.0,10.0,12.0,14.0 mm
Drilling Speed : 800-1000 rpm
Drilling Torque : 30 / 45 Ncm

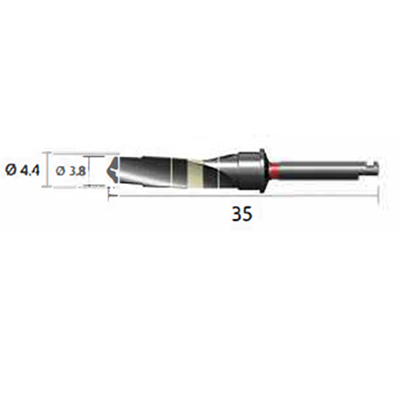

FINAL DRILL Ø 5.0
FINAL DRILL Ø 5.0
L : 35 mm
Ø : 4.4 mm
Drilling Depth : 8.0,10.0,12.0,14.0 mm
Drilling Speed : 800-1000 rpm
Drilling Torque : 30 / 45 Ncm

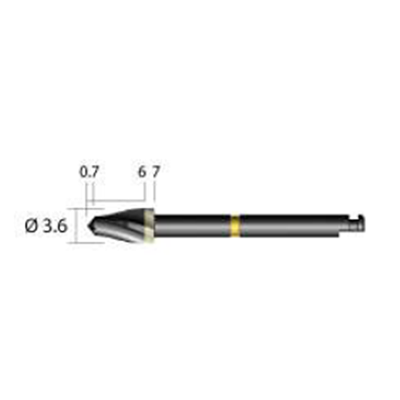

COUNTERSINK DRILL Ø 3.6
COUNTERSINK DRILL
Ø 3.6
L : 35 mm
Ø : 3.6 mm
Drilling Depth : 6.0 (D3-D4), 7.0(D1-D2)
Drilling Speed : 800-1000 rpm
Drilling Torque : 30 / 45 Ncm
COUNTERSINK DRILL Ø 4.0
COUNTERSINK DRILL Ø 4.0
L : 35 mm
Ø : 4.0 mm
Drilling Depth : 6.0 (D3-D4), 7.0(D1-D2)
Drilling Speed : 800-1000 rpm
Drilling Torque : 30 / 45 Ncm

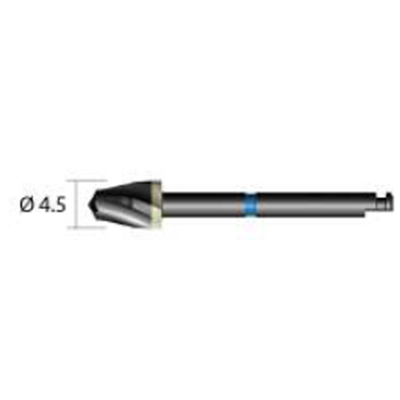

COUNTERSINK Ø 4.5
COUNTERSINK Ø 4.5
L : 35 mm
Ø : 4.5 mm
Drilling Depth : 6.0 (D3-D4), 7.0(D1-D2)
Drilling Speed : 800-1000 rpm
Drilling Torque : 30 / 45 Ncm
COUNTERSINK Ø 5.0
COUNTERSINK Ø 5.0
L : 35 mm
Ø : 5.0 mm
Drilling Depth : 6.0 (D3-D4), 7.0(D1-D2)
Drilling Speed : 800-1000 rpm
Drilling Torque : 30 / 45 Ncm

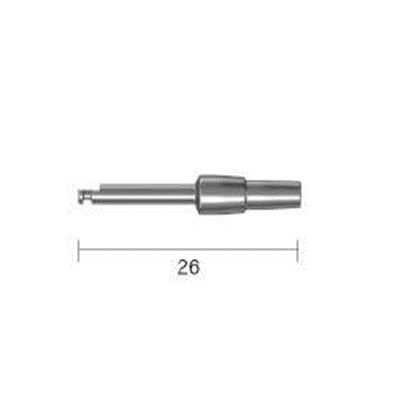

DRILL EXTENSION
DRILL EXTENSION
DREX
HEX DRIVER
HEX DRIVER
XDRVL / HDRVS

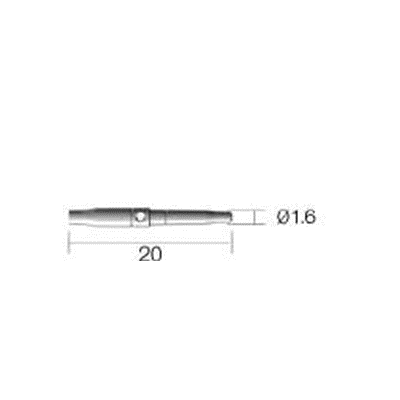

PARALLEL PINS
PARALLEL PINS
PLP

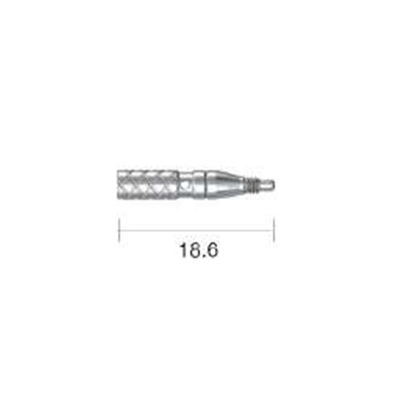

PATH PIN
PATH PIN
PTP

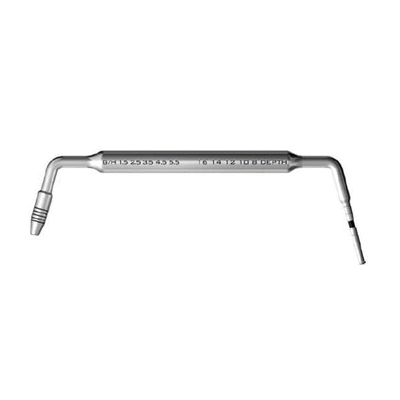

DEPTH GAUGE
DEPTH GAUGE
DPTHG
IMPLANT DRIVER(HAND PIECE)
IMPLANT DRIVER(HAND PIECE)
IDRAS / IDRAL
IMPLANT DRIVER(RACHET)
IMPLANT DRIVER(RACHET)
IDHPAS / IDHPAL
TORQUE WRENCH RATCHET
TORQUE WRENCH RATCHET
TRCHT
MULTI UNIT ABUTMENT DRIVER
MULTI UNIT ABUTMENT DRIVER
MUAADPRL / MUAADPRS
RATCHET
RATCHET
RCHT
